CE mosaic flat dripper drip irrigation system

FOB Reference Price:Get Latest Price
US $200,000-230,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other Watering & Irrigation
Place of Origin:
Hebei, China (Mainland)
Brand Name:
ZFSJ
Model Number:
SJNX-70
Material:
Plastic
condition:
new
product type:
plastic machine
processing type:
extruding
certification:
CE&ISO 9001
pipe material:
PE
production speed:
120m/min
diameter:
12mm,16mm,20mm
screw design:
single screw
installation power:
100kw, 120kw
overall dimention:
36m x 3m x 2.7m;36m*3.5m*3m
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box, can also do as customer's demands.
Port
Xingang, Tianjin

CE mosaic flat dripper drip irrigation system.

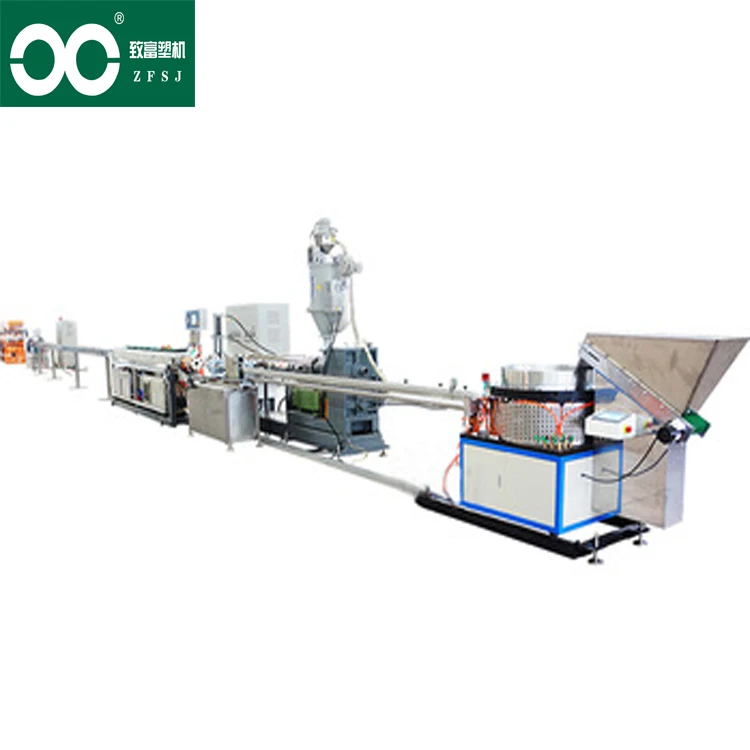

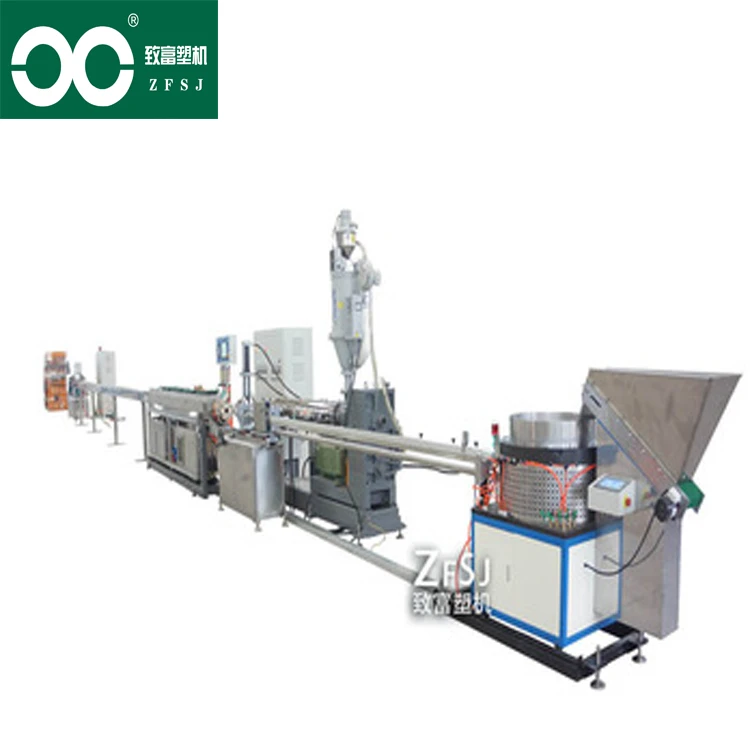

The drip irrigation tube machinery is used for making inline drip irrigation tube, which is for water saving gardening and agriculture etc.





No.

Item

Technical parameter

 SJNX-70*33/1     SJNX-90*30/1

1

Specification of final product

Φ12MM, Φ16MM, Φ20MM

 2

Wall thickness of final product

0.2-0.6MM

0.2-0.9MM

3

Dripper space

100-1000MM

100-1000MM

4

Production speed

120M/MIN

120M/MIN

5

Main driving power

45kw

55kw

6

Max .extruding capacity

120kg/h

158kg/h

7

Heating power

32kw

41kw

8

Filter changing way

Durable filter(patent)

Durable filter(patent)

9

Total dripper supply power

1.18kw

1.18kw

10

Dripper supply speed

≤600pcs/min

≤600pcs/min

11

Driving power of tractor

2.2kw*2

2.2kw*2

12

Driving power of hole drilling

0.4kw

0.4kw

13

Hole drilling speed

≤600pcs/min

≤600pcs/min

14

Winding way

Automatic

Automatic

15

Winder servo motor driver

Servo motor 2kw*2

Servo motor 2kw*2

16

Water consumption

3.5 m³/h

3.5m³/h

17

Air consumption

2.5m³/h

2.5m³/h

18

Installation power

100kw

120kw

19

Overall dimension(L*W*H)

36m*3m*2.7m

36m*3.5m*3m



1. Centralized computer control, which having the characteristics of stable production process, easy operation, continuous production of the drip irrigation tape.

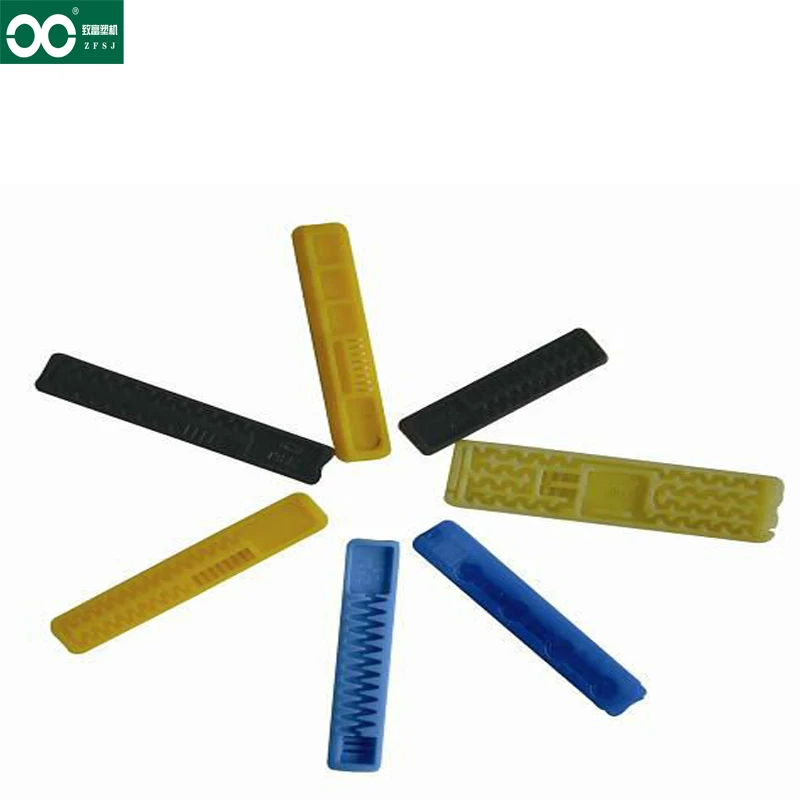

2. Continuously and Synchronously Processing of Emitters feeding, selecting, transferring, storage, quantity-fixing supply and mosaic. Transfer speed can be adjusted according to the production speed

of drip irrigation tape, ensuring that plastic emitters can be transferred to the bonding place of drip tape accurately then bond them firmly.

3. Unique structure, special material and advanced processing crafts of screw bolt of extruder, die head ,and dimension-fixing cylinder makes raw materials extruded and plasticized evenly, pipe-wall smooth and diameter fixed stable.

4. Vacuum water tank and cooling water tank are made of stainless steel. Vacuum degree in vacuum water tank can be adjusted flexibly and accuratelyand can be kept stable.

5. Strong drying equipment can solve effectively water carrying in the high-speed production.

6. Double haul-off machines controlled by frequency-variable technology, with steady speed

which can be adjusted synchronously according to production speed. And the line has low noise.

7. Mechanical method with PLC controlled drilling dripping holes. Meanwhile, it is equipped with residue recycling system. It has characteristics of high speed of hole-drilling and no residue left.

8. Double-station rolling method, it has the functions of automatic stop and automatic alarm

 according to length-fixing.
