Quick Details

  • Condition: New
  • Application: Pipe
  • Plastic Processed: PE
  • Screw Design: Single-screw
  • Automatic Grade: high
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: ZFSJ
  • Model Number: SJDY-60
  • Voltage: 380v
  • Power(W): 45kw
  • Dimension(L*W*H): 12m*1.5m*2.7m
  • Weight: 2200kg
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • diameter: 12mm-20mm
  • speed: 65m/min
  • tape thickness: 0.18-0.22mm
  • warranty: one year
  • screw design: single screw
  • filter changing way: durable filter
  • capacity: 55kg/h
  • installation power: 45kw
  • package: wooden case
  • Processing Type: Extruding Machine

Packaging & Delivery

Packaging Details wooden case and also we can do as customer's demand,
Delivery Time 7 working days



Product Description





Labyrinth Type Drip Irrigation Belt Production Line Agricultural machine



Main technical parameter

Model

SJDY-60

Specification of final product

φ12-20mm

Production speed

65 m/min

Main driving power

18.5kw

Max.extruding capacity

55kg/h

Heating power

22kw

Filter changing way

durable filter (patent)

Driving power of shaping wheel

0.75kw

Driving power of tractor

0.75kw

Winding motor

torque motor 6N.m*2

Water consumption

1m³/h

Air consumption

0.3m³/h

Installation power

45kw

Overall dimension(L*W*H)

12M*1.5M*2.7M

Weight

2200kg

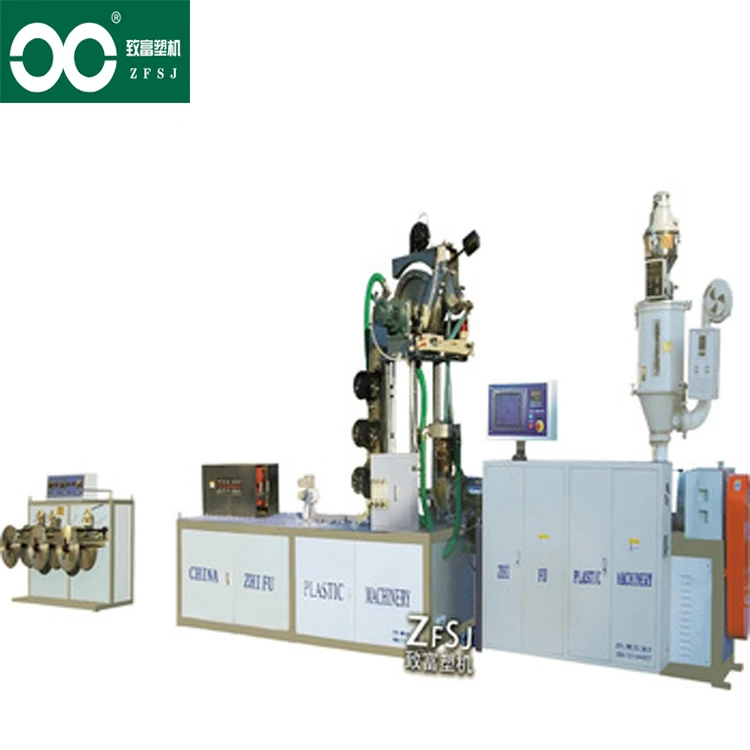

Agricultural Machine picture and component :

1.Extruder 2.die head 3.forming part 4.wind cooling 5.water cooling

6.tractor

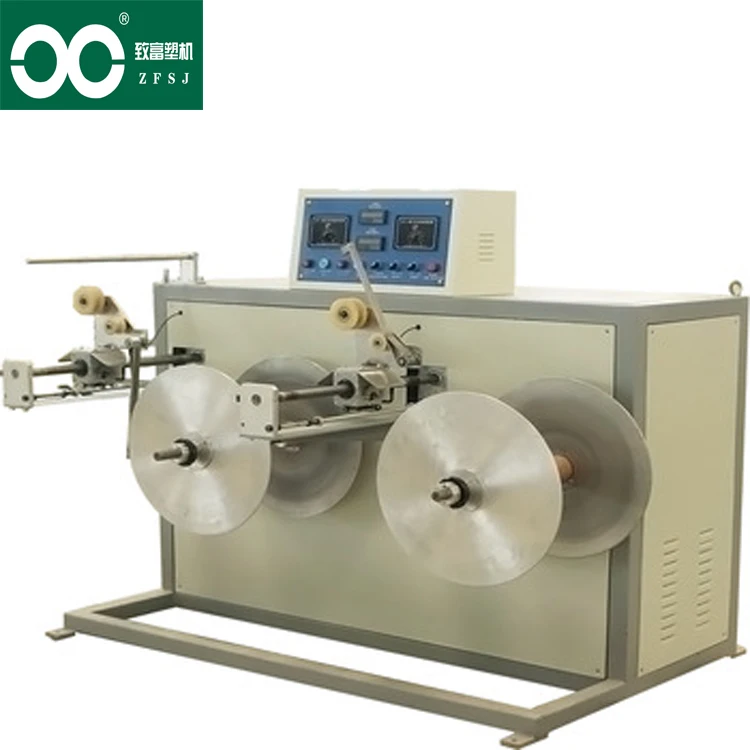

We can make the machine winder to 2-station winder and 3-station winder under customers demands .







Packaging & Shipping









The machine is packaged by strong seaworthy wooden Box   .



Delivery port :Tianjin ,Xingang port . By sea .



One 20F Container is needed !











FINAL PRODUCT









Three Drip Irrigation Tape Produced By The  Labyrinth Type Drip Irrigation Belt Production Line Agricultural machine  :



Tape Diameter :12mm 16mm 20mm



Tape Thickness:0.18-0.22mm



Flow rate :1-5L/H



Distance :100mm 200mm 300mm......
